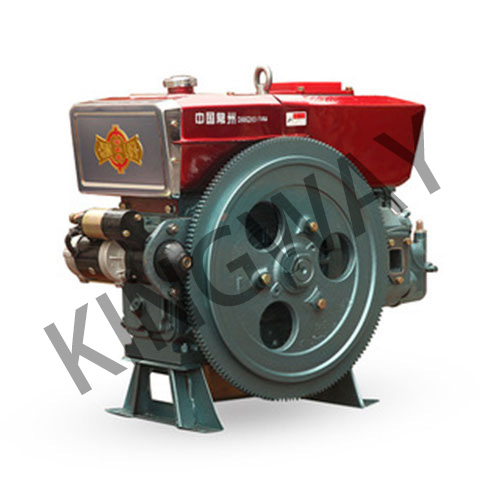

Single Cylinder Diesel Engine

Model: R180
Rated Speed RPM: 2200 - 2400
Type: Single cylinder, horizontal, water-cooled, four stroke
Flywheel rotation direction: Counterclockwise

Online consultation

Consultation hotline:+65 9825 7795

Product introduction

Model	R180	R180N	185	185N	190	190N	192	195	R175A	R175AN
Type	Single cylinder, horizontal, water-cooled, four stroke
Bore (mm)	80	80	85	85	90	90	92	95	75	75
Stroke (mm)	90	90	90	90	90	90	90	90	80	80
Displacement(L)	0.452	0.452	0.51	0.51	0.573	0.573	0.598	0.638	0.353	0.353
Compress Ratio	21:01	21:01	21:01	21:01	21:01	21:01	21:01	17:01	17:01	17:01
Rated Power (KW/HP) 12H	5.15/7	5.15/7	5.88/8	5.88/8	7.35/10	7.35/10	8.08/11.1	8.82/12	4.41	4.41
Rated Power (KW/HP) 1H	5.88/8	5.88/8	6.62/9	6.62/9	8.09/11	8.09/11	8.75/12.1	9.7/13.2	5.15	5.15
Rated Speed RPM	2200	2200	2200	2200	2200	2200	2200	2200	2400	2400
Flywheel rotation direction	Counterclockwise
Lubrication method	Pressure splash lubrication
Starting Method	Manual /Electric start
Oil supply angle	14°-17°
Inlet and exhaust valve gap at cold state	0.25±0.05
Net Weigth (KG)	92	92	95	95	95	98	98	98	96	98
Overall Dimension (LWH)mm	670x378x560	670x378x560	730x378x560	730x378x560	670x378x560	670x378x560	730x378x560	670x780x560	730x378x560	730x378x560
