1.产品名称：30KVA Zone 2 Hazardous Area Diesel Generator
2.产品标题：30KVA Diesel Generator | Zone 2 Hazardous Area for Oil and Gas
3.产品规格：
Equipment: | 30KVA Explosion-proof Diesel Engine Genset |
Directive : | 2014/34/UE-ATEX |
Standard: | EN 60079 series / EN 1834 series / EN 1755 |
Convert to: | Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc ) |
4.产品描述：

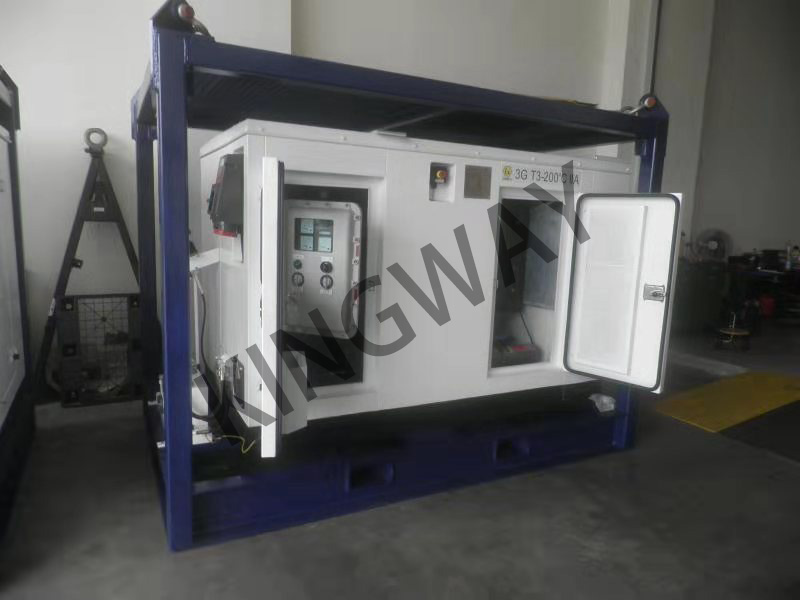

Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 30KVA @ 0.8 pf,400VAC, 3 Phase +Neutral, 50HZ Output
Quality & Compliance:
The Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give a《DECLARATION OF CONFORMITY》which is signed by the manufacturer according to the ATEX Standard EN 1834-1.
MODEL | EADG60-EX2 |
COMPLETE MACHINE | |
Explosion-proof Mark | |
Hazardous Zone | ZONE 2 |
Certificate | 《Declaration of conformity》 |
Typical generating set output (0.8 pf 25ºC) | 30KVA 380V /50HZ |
Max. Working Angle | 15° |
75 | |
Machine Weight (kg) | 2400 (dry) for reference only |
Dimensions: L x W x H mm | 3412X2200X2256 |
Fuel tank | >300L |
DIESEL ENGINE | |
Manufacturer | CUMMINS |
Model | 4BT3.9-G2 |
Governed Speed (rpm) | 1500 |
Prime Power (kW) | 36kW@1500rpm |
Displacement (L) | 3.9 |
No. of cylinders | 4 |
Engine Oil Capacity (L) | 10.9 |
Electrical System Voltage (V) | 24 |
Rated Capacity of Battery | 80Ah |
GENERATORS | |
Manufacturer | Kingway OEM |
Explosion-proof Mark | |
Certificate number | 《Declaration of conformity》 |
Hazardous Zone | ZONE 2 |
Ambient temperature | -25℃~ +60℃ |
Altitude | ≤1000M |
Rated Voltage | 380V(50HZ) |
Rated Frequency | 50HZ |
Rated REV | 1500RPM |
Power Factor | 0.8 LAG |
Operation | Continuous (S1) |
IP Grade | IP54 |
Controller | ComAp MRS16 |
