185CFM Zone 2 Hazardous Area Diesel Sullair Air Compressor
Zone 2 Hazardous Area Equipment 185CFM Suallair Air Compressor
Equipment: | 185CFM Explosion-proof Diesel Engine Air Compressor |
Directive : | 2014/34/UE-ATEX |
Standard: | EN 60079 series / EN 1834 series |
Convert to: | Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc ) |
Original Compressor: | SULLAIR DLQ185 |

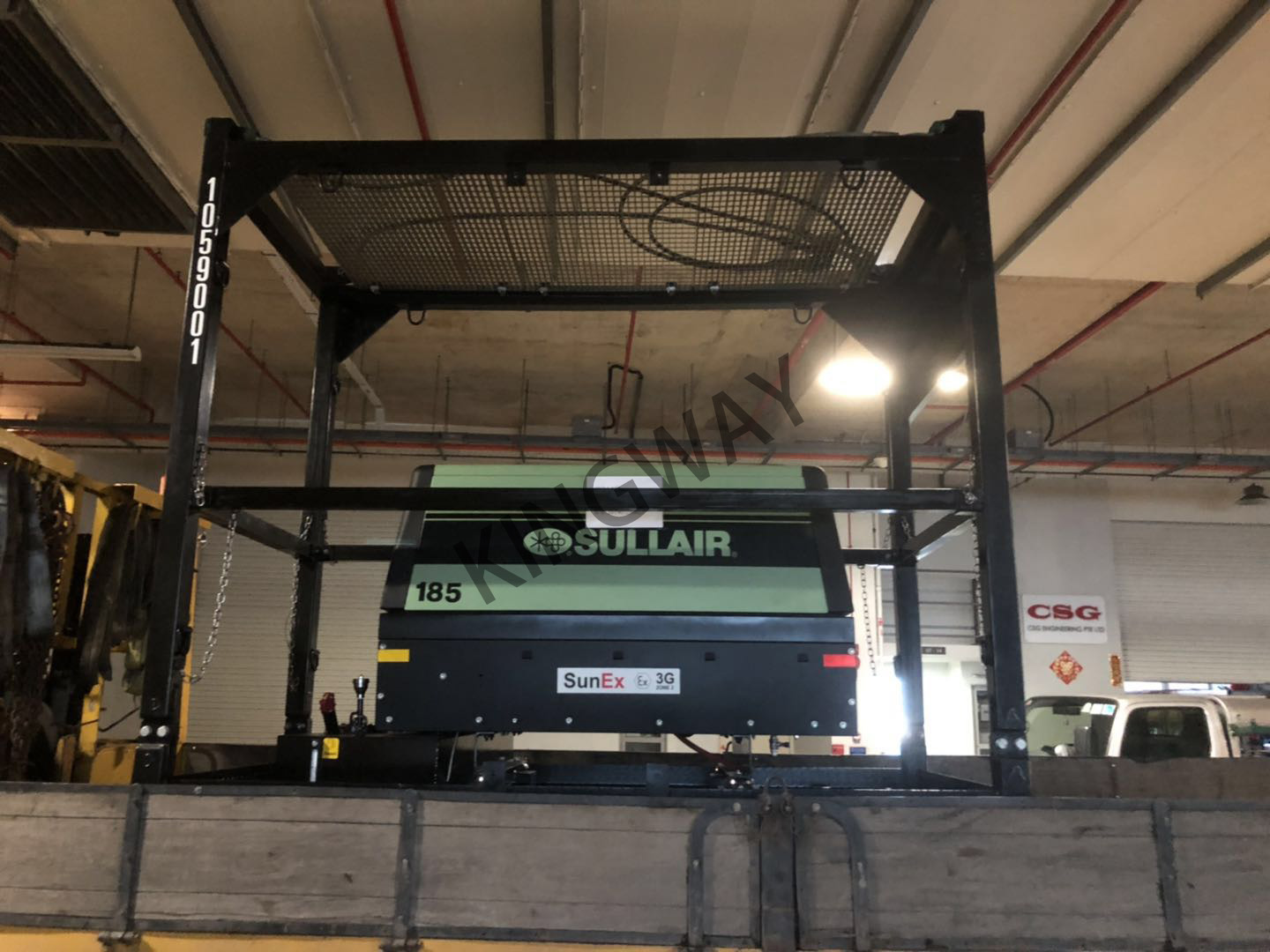

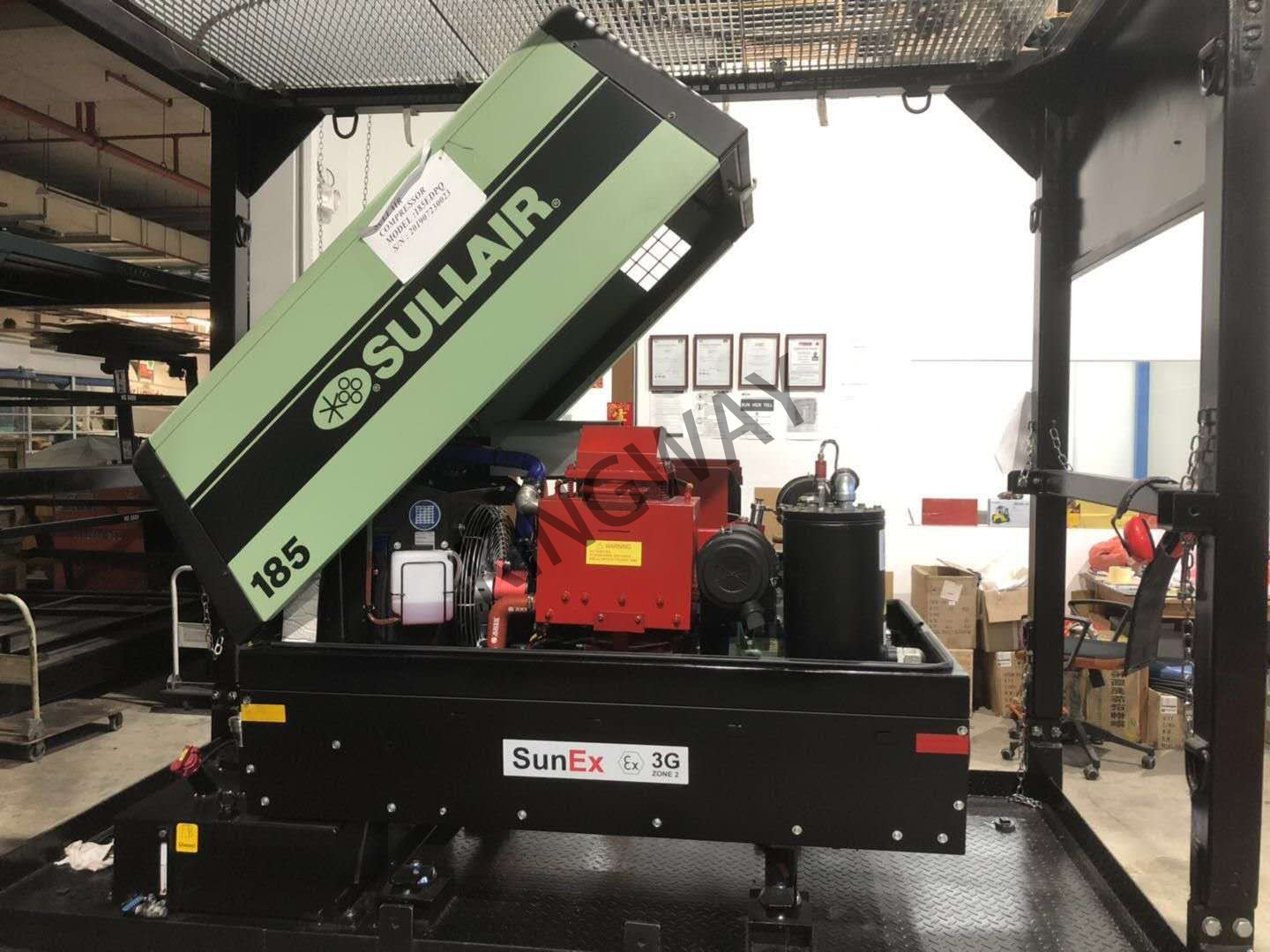

Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 185CFM Explosion-proof Air Compressor
MODEL | DLQ185-EX |
COMPLETE MACHINE | |
Explosion-proof Mark |
|
Hazardous Zone | ZONE 2 |
Certificate | 《Declaration of conformity》 |
Nominal Volume Capacity (m³/min /cfm) | 5.2/ 185 |
Rated Discharge Pressure (bar/psi) | 6.9 /100 |
Working Pressure Range (bar) | 4.5-6.9 |
Noise Sound Level (±3 dBA at 7m) | 76 |
Machine Weight (kg/lbs) | 2000 (dry) |
Dimensions: L x W x H mm | 2500X1800X1800 |
Specification of Air Supply Valve | 2-NPT3/4 |

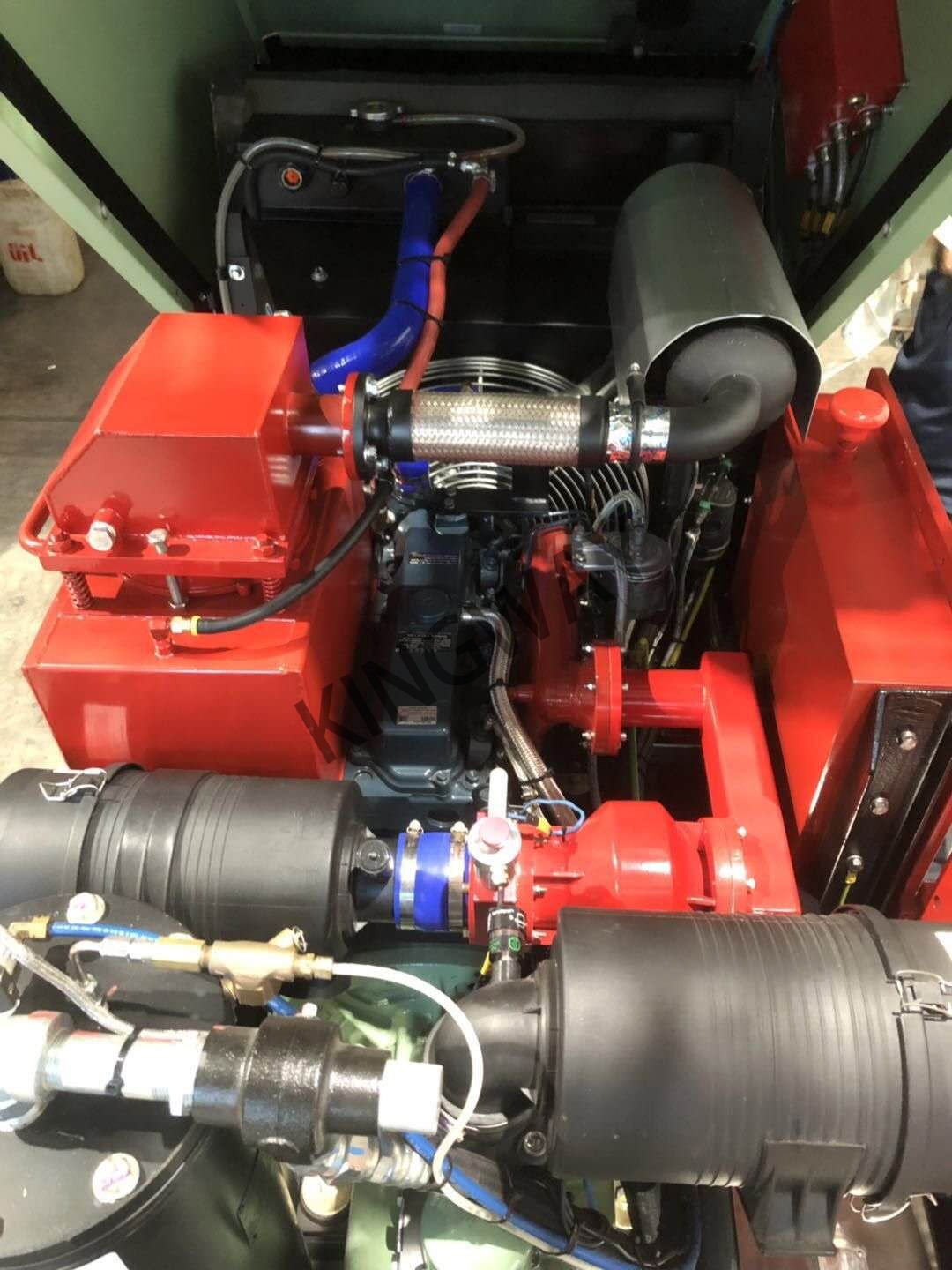

DIESEL ENGINE | |
Manufacturer | KUBATO |
Model | V2403-M-DI-E3B |
Full-load Speed (rpm) | 2700 |
Rated Power (kW/bhp) | 36.5/49 |
Displacement (L) | 2.4 |
Engine Oil Capacity (L) | 10 |
Full-load Fuel consumption (L/h) | 10 |
Electrical System Voltage (V) | 12 |
Rated Capacity of Battery | 160Ah/ea |
