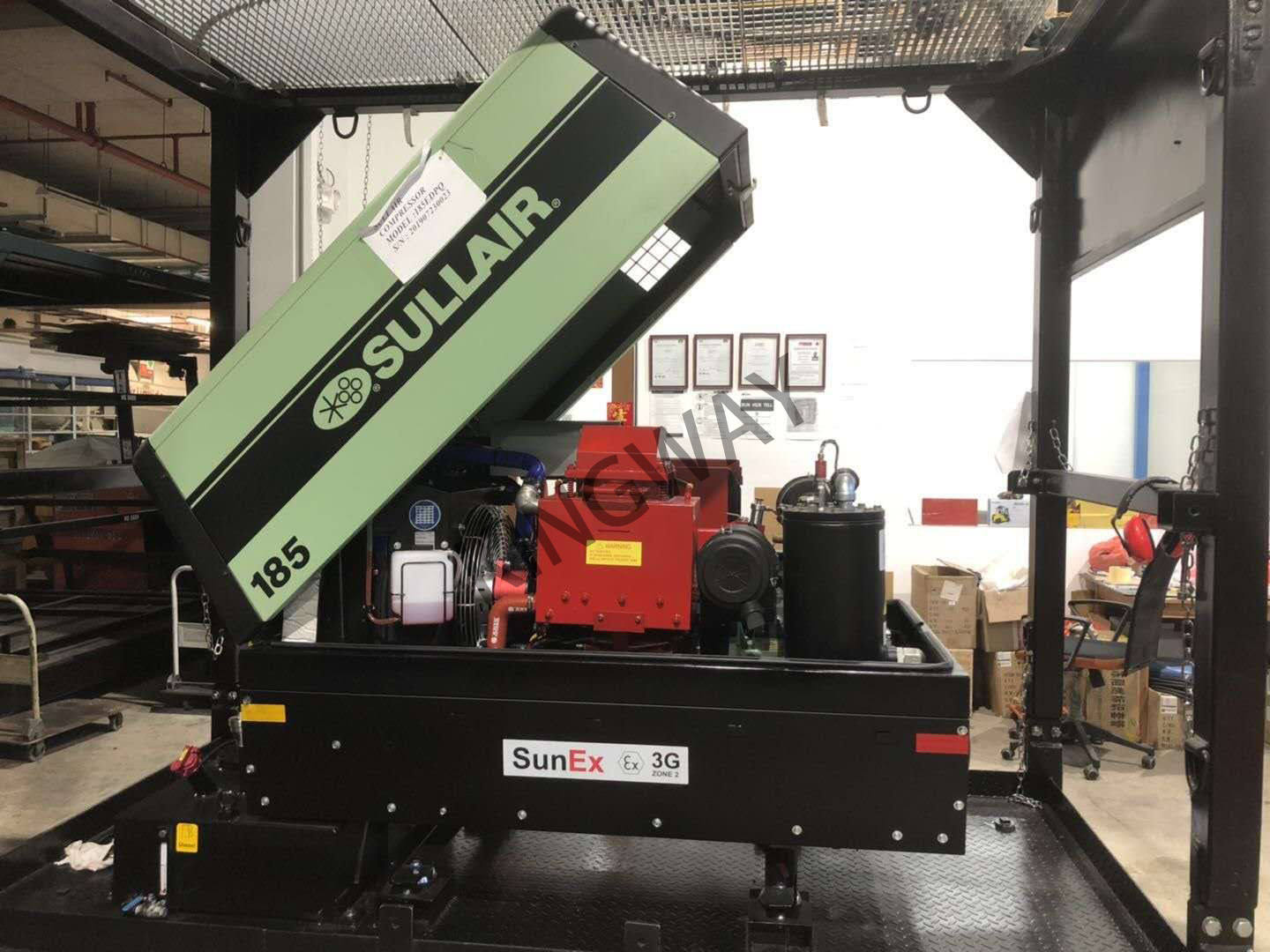

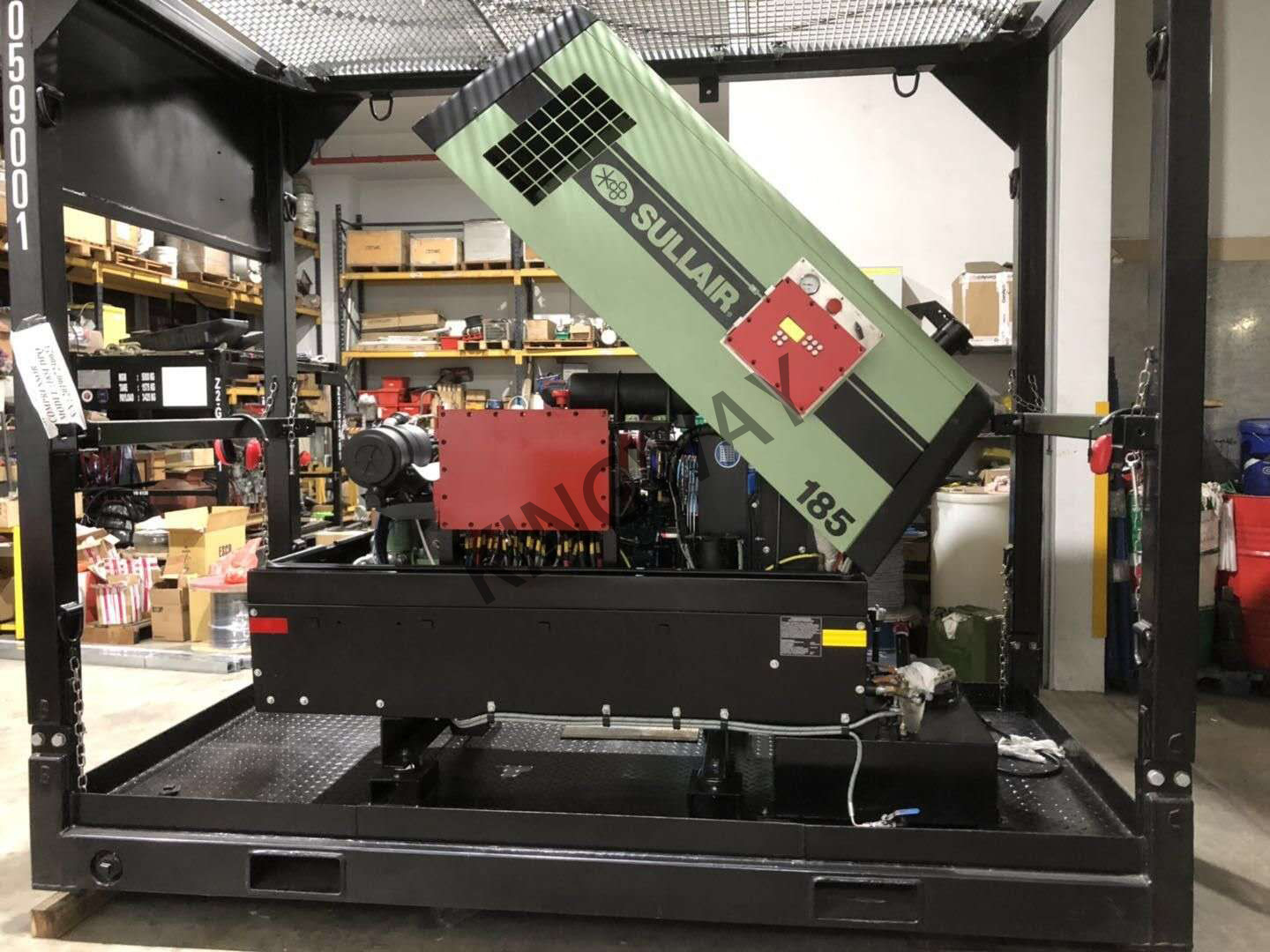

Zone 2 Hazardous Area Equipment 375CFM Sullair Air Compressor
Equipment: | 750CFM Explosion-proof Diesel Engine Air Compressor |
Directive : | 2014/34/UE-ATEX |
Standard: | EN 60079 series / EN 1834 series |
Convert to: | Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc ) |
Original Compressor: | Sullair DLQ750H |

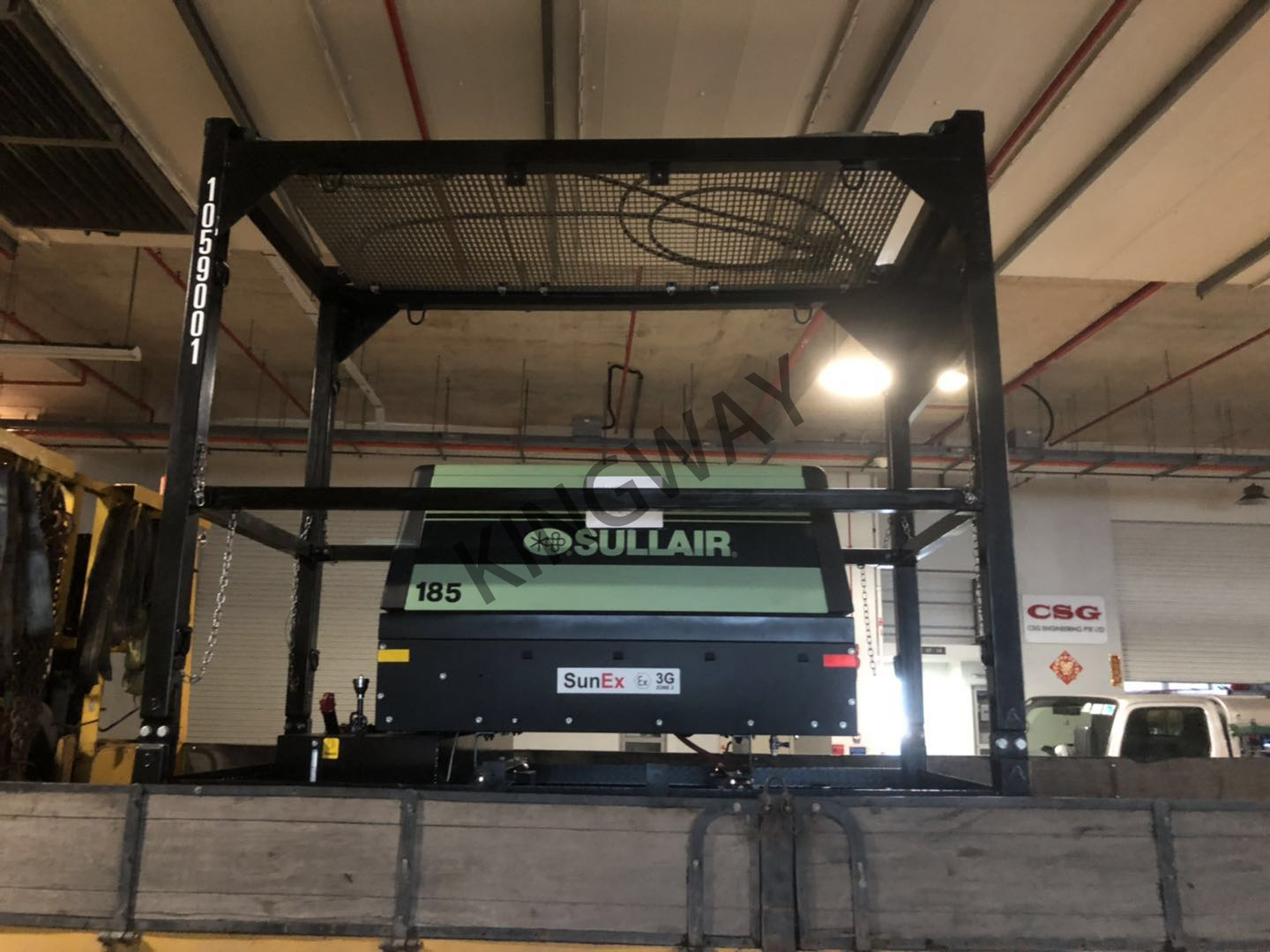

Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 750CFM Explosion-proof Air Compressor
MODEL | DLQ750H-EX |
COMPLETE MACHINE | |
Explosion-proof Mark | II 3G IIB T3 Gc |
Hazardous Zone | ZONE 2 |
Certificate | 1.ATEX Certificate for engine 2.《Declaration of conformity》 for Compressor set. 3.All certificate are from Europe. |
Nominal Volume Capacity (m³/min /cfm) | 21/ 750 |
Rated Discharge Pressure (bar/psi) | 10.3 /150 |
Working Pressure Range (bar) | 5.5-12.0 |
Max. Working Angle | 15° |
Noise Sound Level (±3 dBA at 7m) | 79 |
Machine Weight (kg) | 4200 (dry) for reference only |
Dimensions: L x W x H mm | 3750X2000X2250, with DNVGL-ST-E271 certified lifting frame |
Specification of Air Supply Valve | 1-Rp2, 1-Rp3/4 |
DIESEL ENGINE | |
Manufacturer | CUMMINS |
Model | 6CTA8.3-C260 |
Full-load / No-load Speed (rpm) | 1850/1300 |
Rated Power (kW/bhp) | 194/260 |
Displacement (L) | 8.3 |
Engine Oil Capacity (L) | 18 |
Fuel Tank Capacity (L) | 375 |
Electrical System Voltage (V) | 24 |
Rated Capacity of Battery | 210Ah/ea |
