Quality & Compliance:
The Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give a《DECLARATION OF CONFORMITY》which is signed by the manufacturer according to the ATEX Standard EN 1834-1.

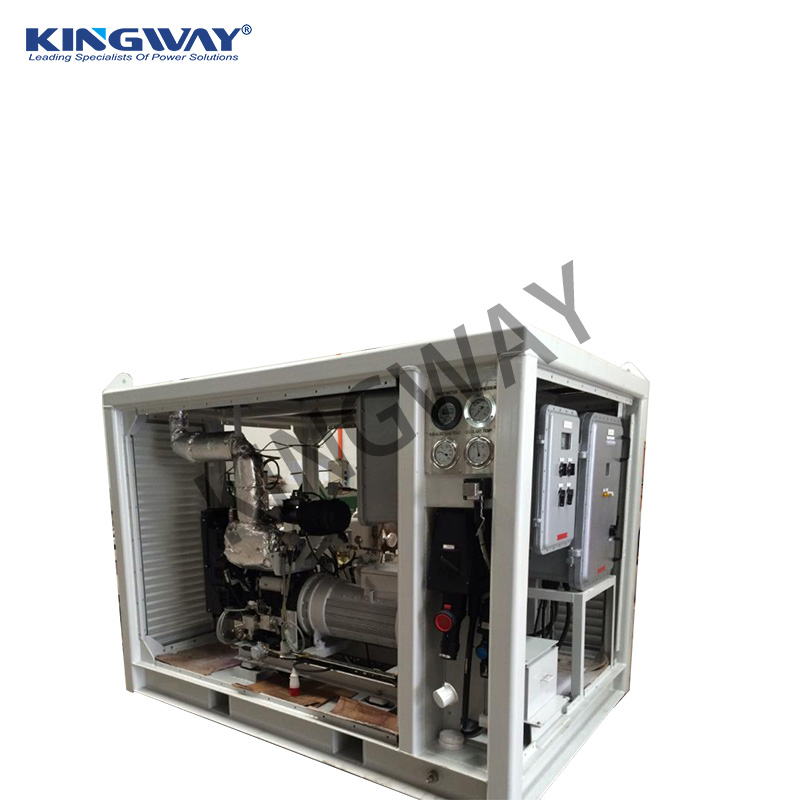

MODEL | EADG60-EX2 |
COMPLETE MACHINE | |
Explosion-proof Mark | |
Hazardous Zone | ZONE 2 |
Certificate | 《Declaration of conformity》 |
Typical generating set output (0.8 pf 25ºC) | 60KVA 380V /50HZ |
Max. Working Angle | 15° |
75 | |
Machine Weight (kg) | 2500 (dry) |
Dimensions: L x W x H mm | 3412X2200X2256 |
Fuel tank | >300L |
DIESEL ENGINE | |
Manufacturer | CUMMINS |
Model | 6BT5.9-G2 |
Governed Speed (rpm) | 1500/1800 |
Prime Power (kW) | 96kW@1500rpm |
Displacement (L) | 5.9 |
No. of cylinders | 6 |
Engine Oil Capacity (L) | 18 |
Electrical System Voltage (V) | 24 |
Rated Capacity of Battery | 120Ah/ea |
GENERATORS | |
Manufacturer | Kingway OEM |
Explosion-proof Mark | |
Certificate number | 《Declaration of conformity》 |
Hazardous Zone | ZONE 2 |
Ambient temperature | -25℃~ +60℃ |
Altitude | ≤1000M |
Rated Voltage | 380V(50HZ) |
Rated Frequency | 50HZ |
Rated REV | 1500RPM |
Power Factor | 0.8 LAG |
Operation | Continuous (S1) |
IP Grade | IP66 |
Controller | ComAp MRS16 |
